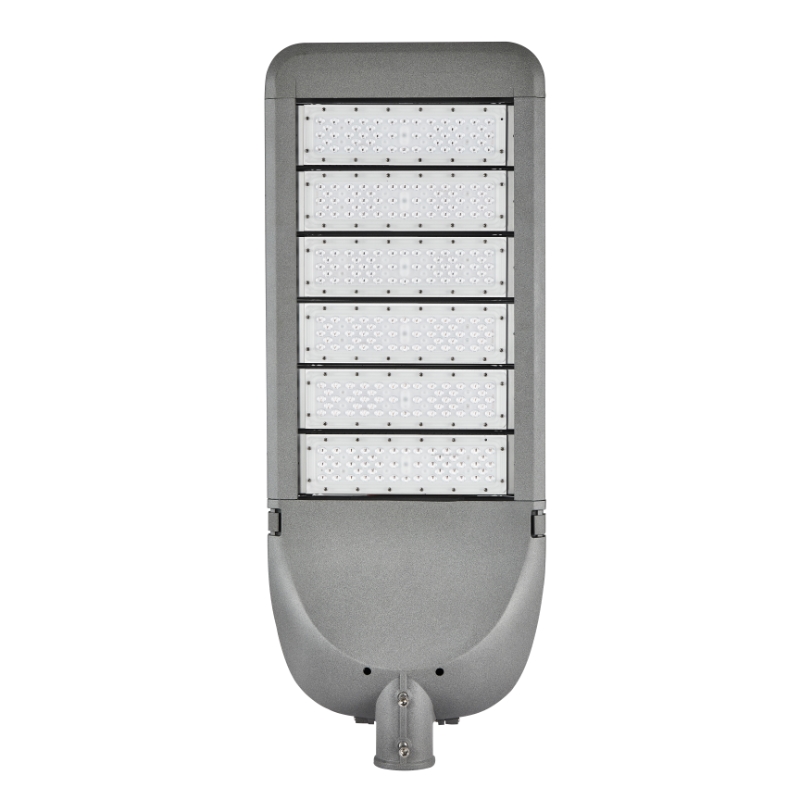

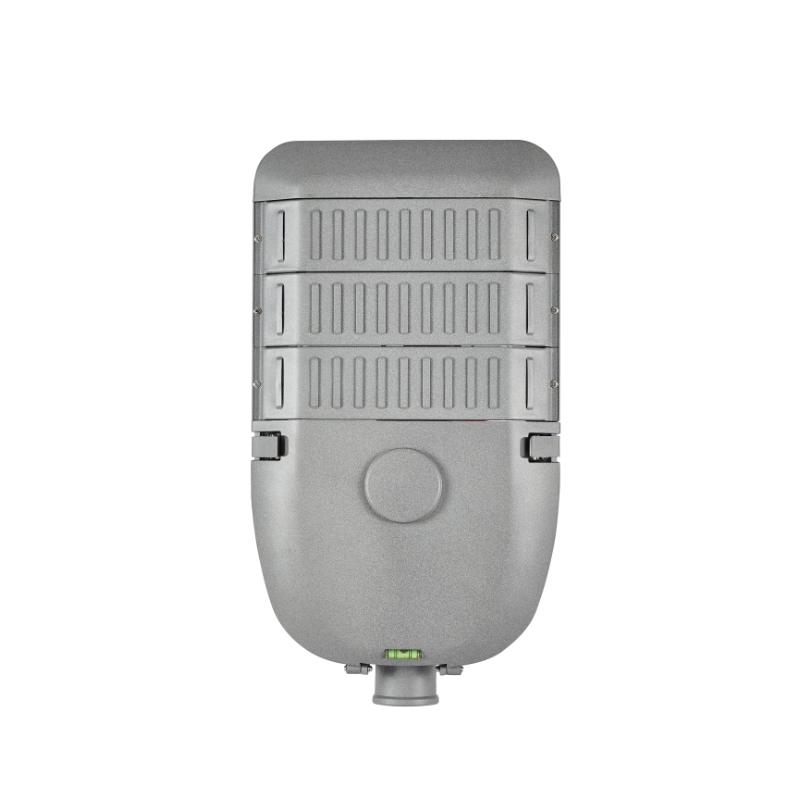

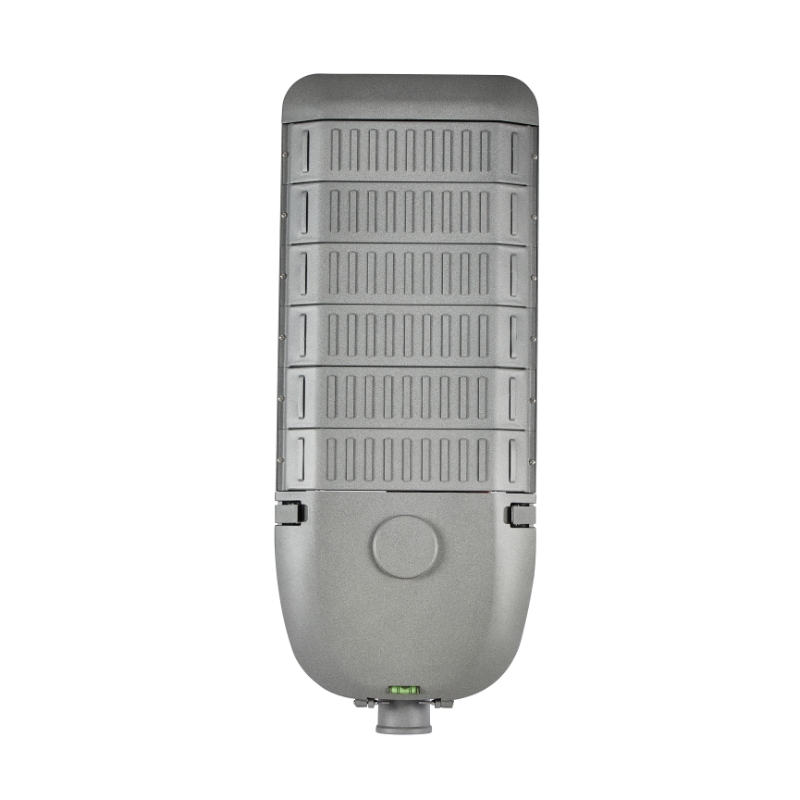

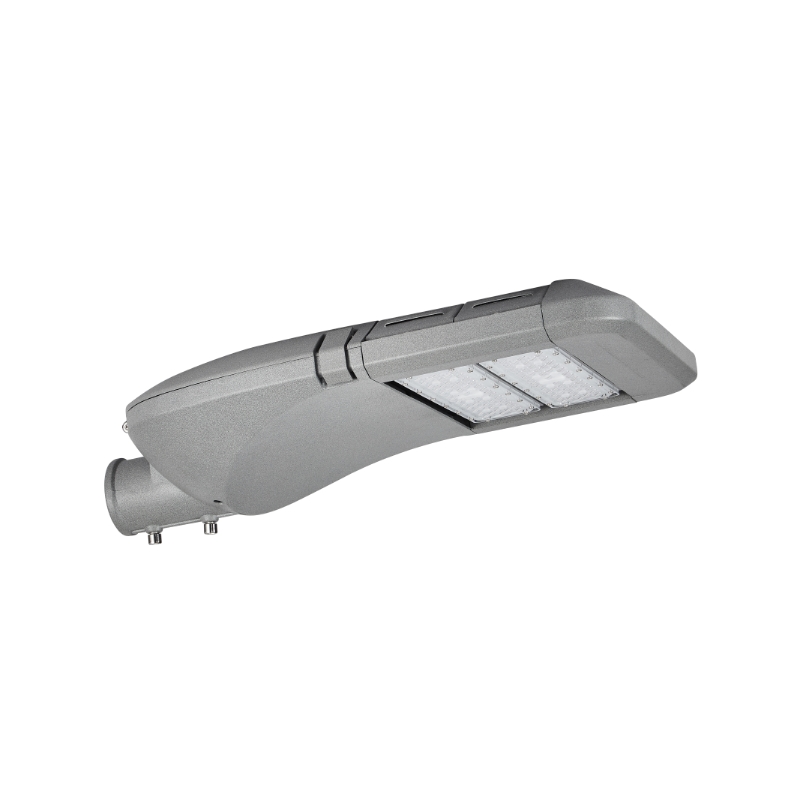

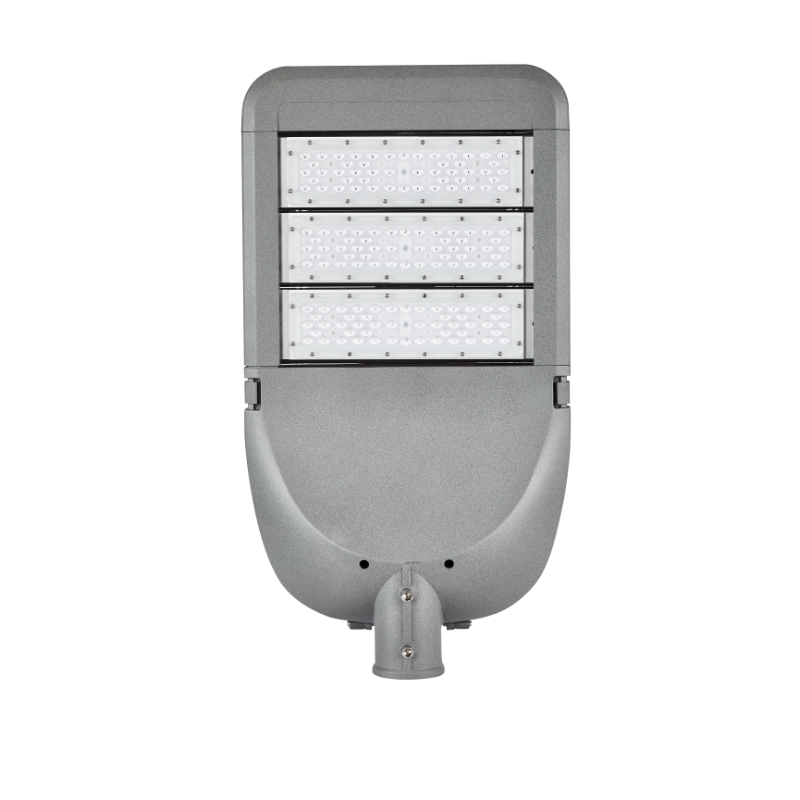

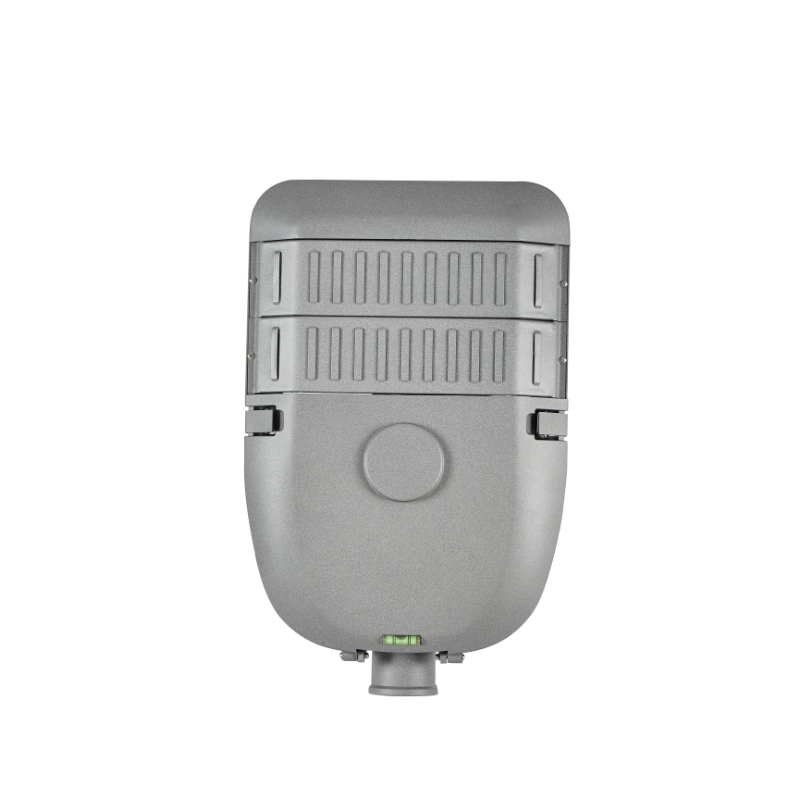

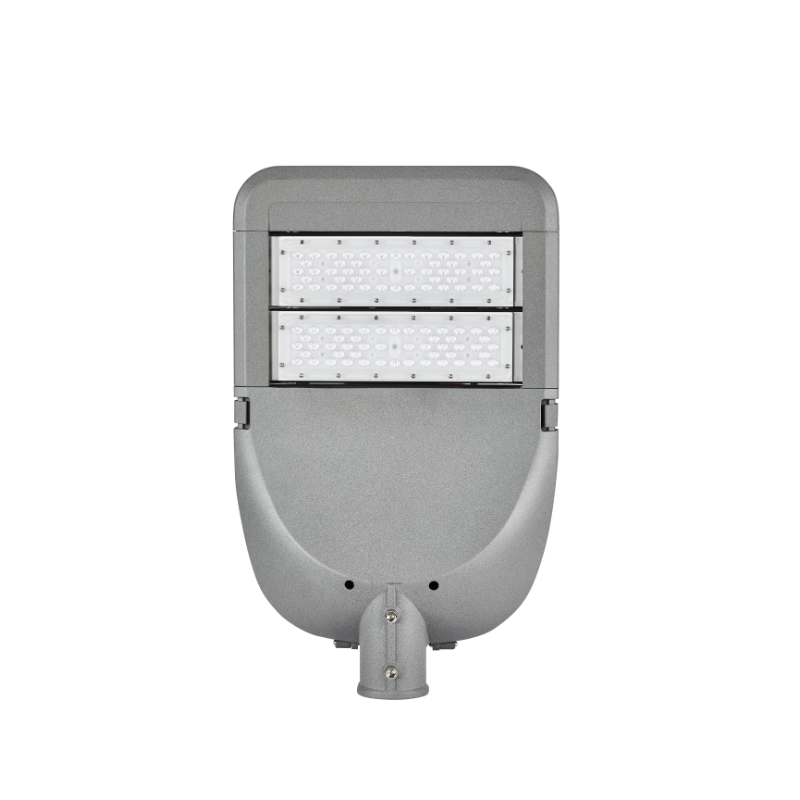

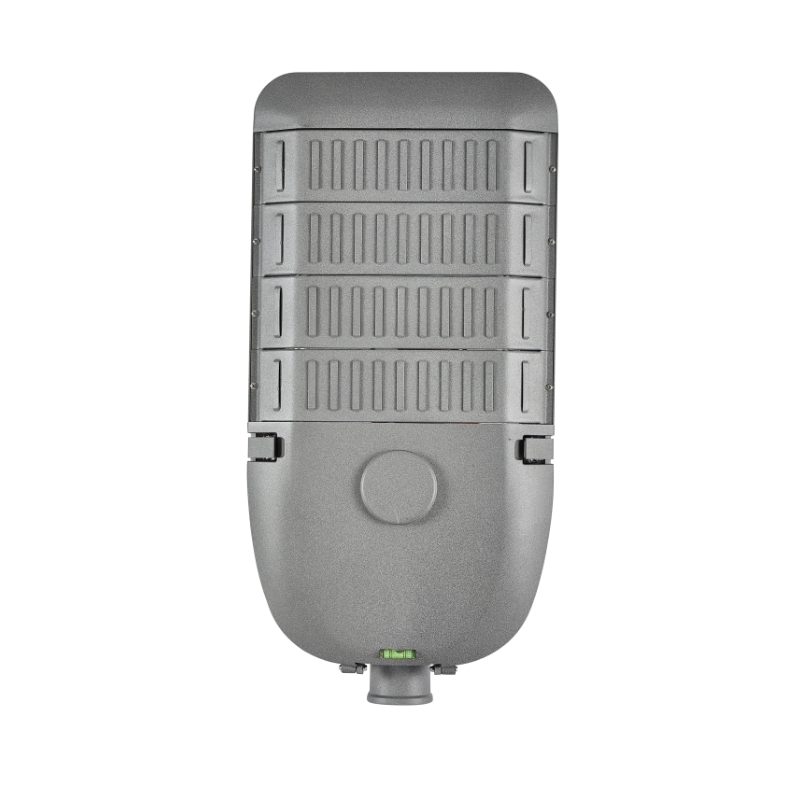

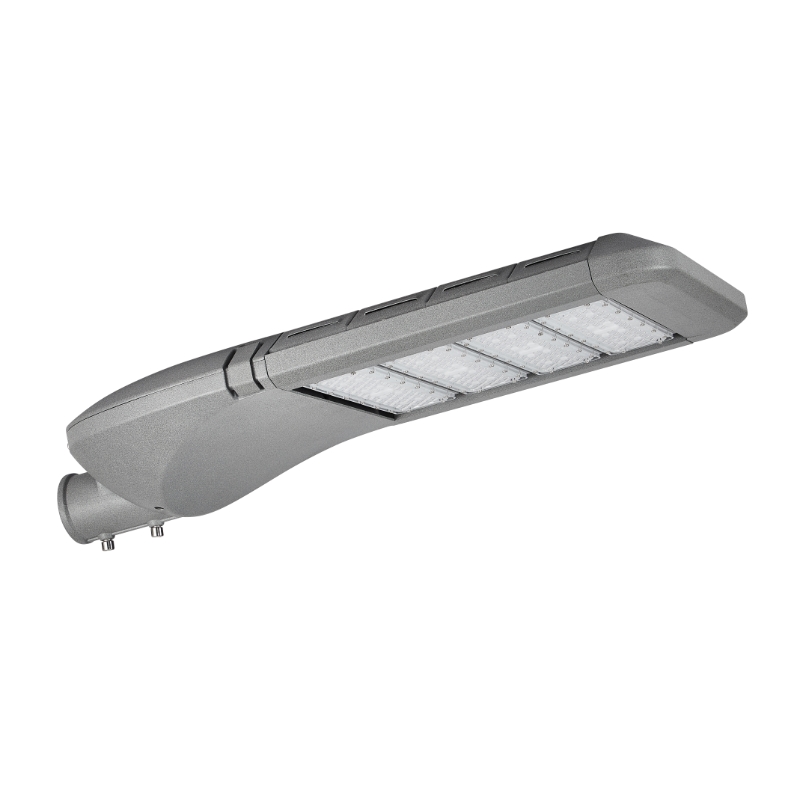

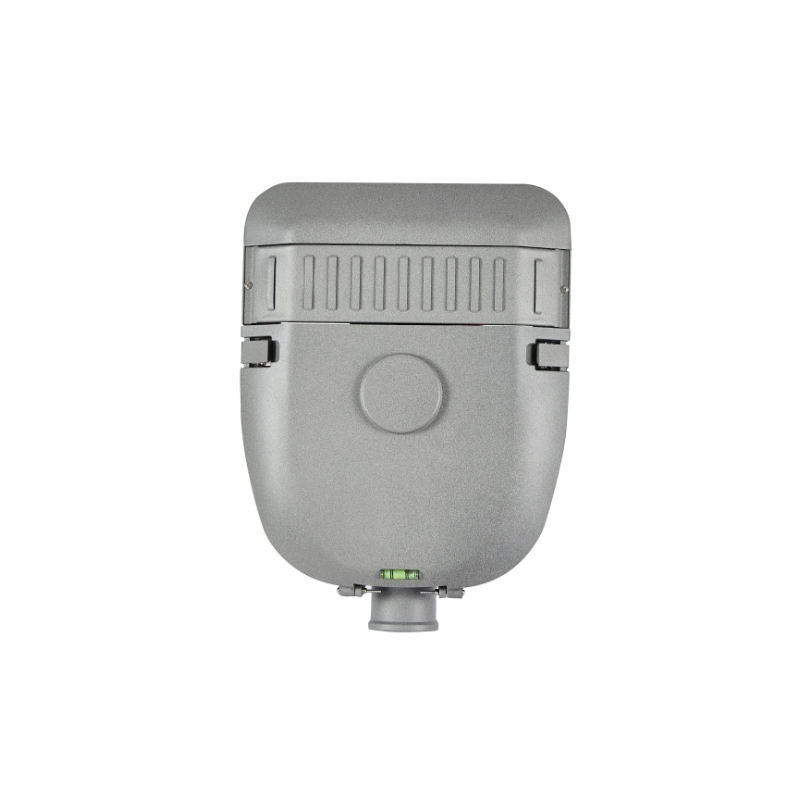

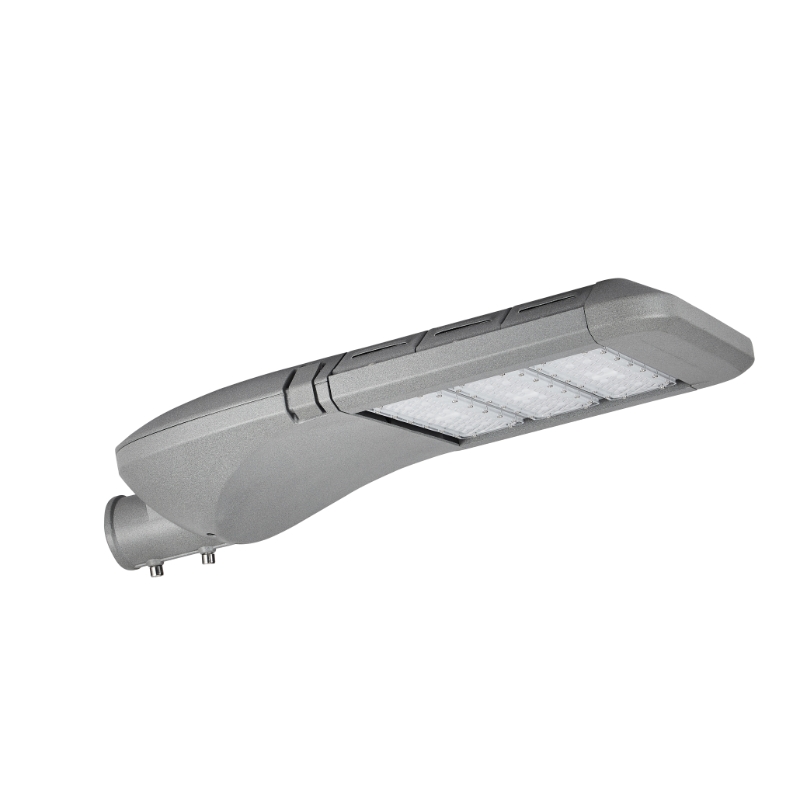

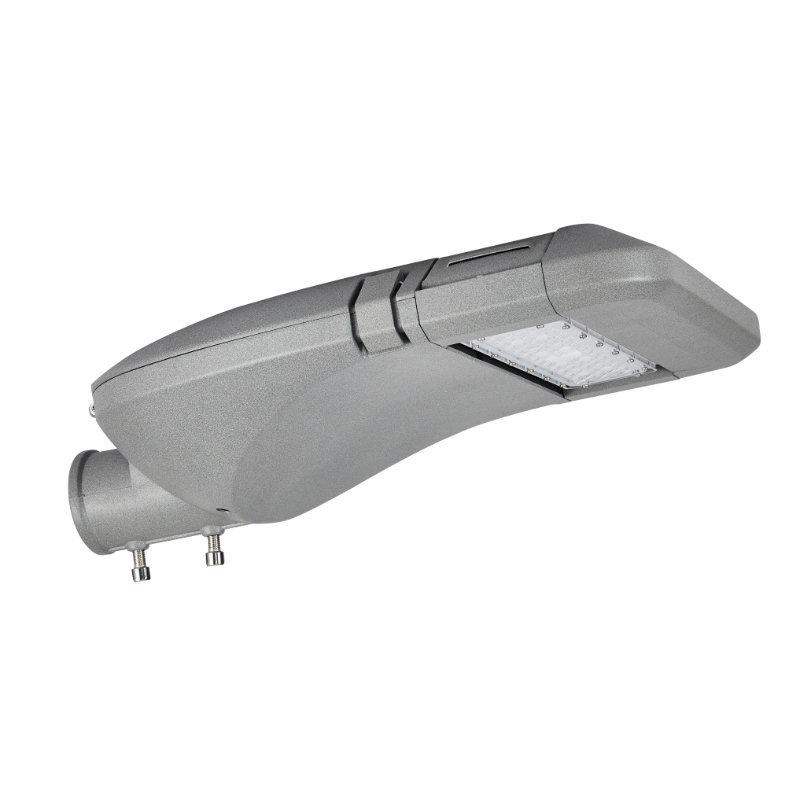

DLD系列 LED 路燈是一款性價比高、采用一體化壓鑄工藝的專業路燈。其內部電路方案為高壓線性恒流 IC 驅動燈板，將燈珠、驅動器和防雷電路集成在鋁基板上。產品散熱設計采用一體化壓鑄散熱器平式設計，內置散熱鰭片，所有器件緊密貼合在散熱器上，減小了 LED 燈具的體積，提高了散熱效果，既能延緩燈珠衰減，又簡化了燈具的裝配工藝。
該產品適用于主干道、次干道、支路、居民區及其他需要道路照明的場所。
技術參數表
No. | 參數名稱Nameofparameter | 規格型號及參數表（帶驅動和無驅動） Specifications Model parameter specifications（with Driver and without Driver） | |||||||||
1 | 型號Type | DLD-50W | DLD-60W | DLD-100W | DLD-120W | DLD-150W | DLD-180W | DLD-200W | DLD-250W | DLD-300W | DLD-360W |
2 | 功率Rated power | 50W | 60W | 100W | 120W | 150W | 180W | 200W | 250W | 300W | 360W |
3 | 電壓范圍Allowable operating voltage range | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V |
5 | 功率因數 PF Power factor | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 |
6 | 總諧波 Total harmonic distortion | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% |
7 | 電氣強度 Electric strength | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V |
8 | 角度Distribution Angle | 65°*155° | 65°*155° | 65°*155° | 65°*155° | 85°*155° | 85°*155° | 85°*155° | 85°*155° | 85°*155° | 85°*155° |
9 | 顯色指數CRI(color rendering index)Ra | ≥80/70 | ≥80/70 | ≥80/70 | ≥80/70 | ≥80/70 | ≥80/70 | ≥80/70 | ≥80/70 | ≥80/70 | ≥80/70 |
10 | 色溫Color temperatureCCT | 5700±300K | 5700±300K | 5700±300K | 5700±300K | 5700±300K | 5700±300K | 5700±300K | 5700±300K | 5700±300K | 5700±300K |
11 | 光效 Whole light effect(lm) | 110-180lm | 110-180lm | 110-180lm | 110-180lm | 110-180lm | 110-180lm | 110-180lm | 110-180lm | 110-180lm | 110-180lm |
12 | 環境溫度Operating ambient temperature | -45°~40° C | -45°~40° C | -45°~40° C | -45°~40° C | -45°~40° C | -45°~40° C | -45°~40° C | -45°~40° C | -45°~40° C | -45°~40° C |
13 | 壽命Life | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs |
14 | 浪涌Lightning and surge protection rating | ≥6K | ≥6K | ≥6K | ≥6KV | ≥6KV | ≥6KV | ≥6KV | ≥6KV | ≥6KV | ≥6KV |
15 | 防護等級IP Grade | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 |
