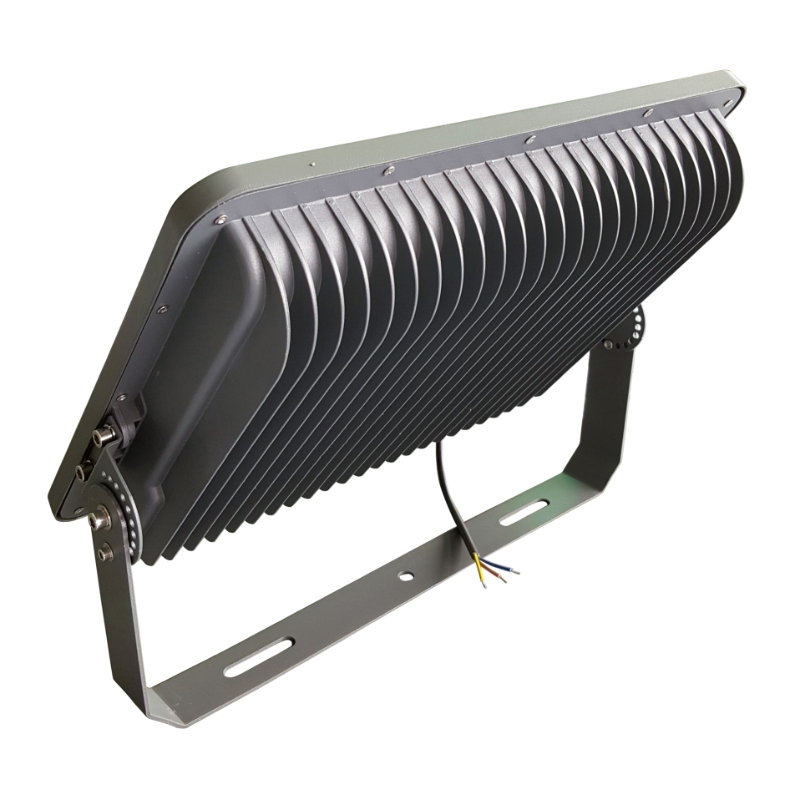

MJT 投光燈
產品介紹
功率范圍
RJ-MJT-30W

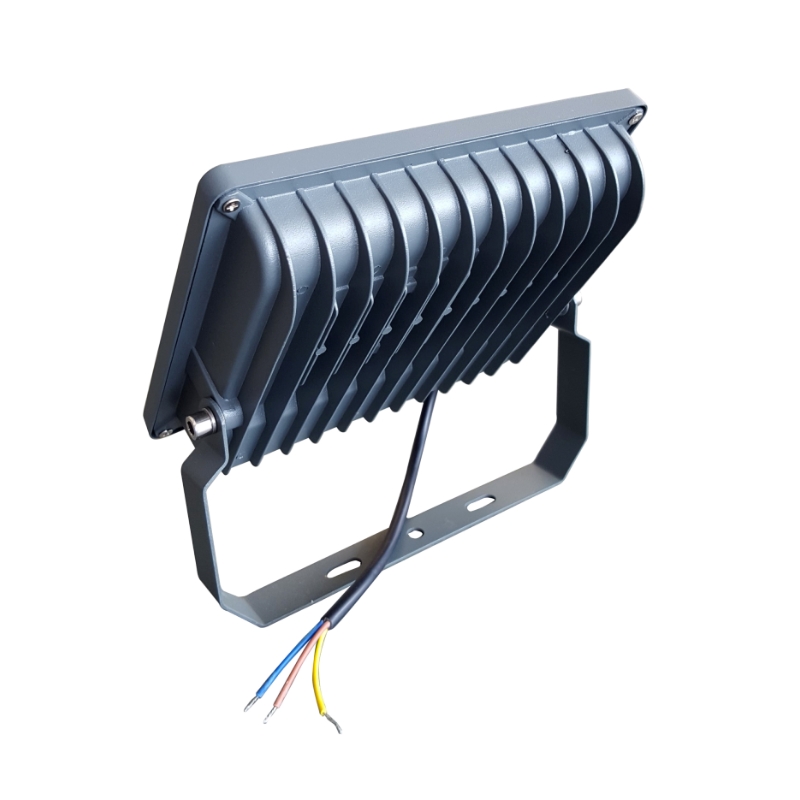

MJT-50W

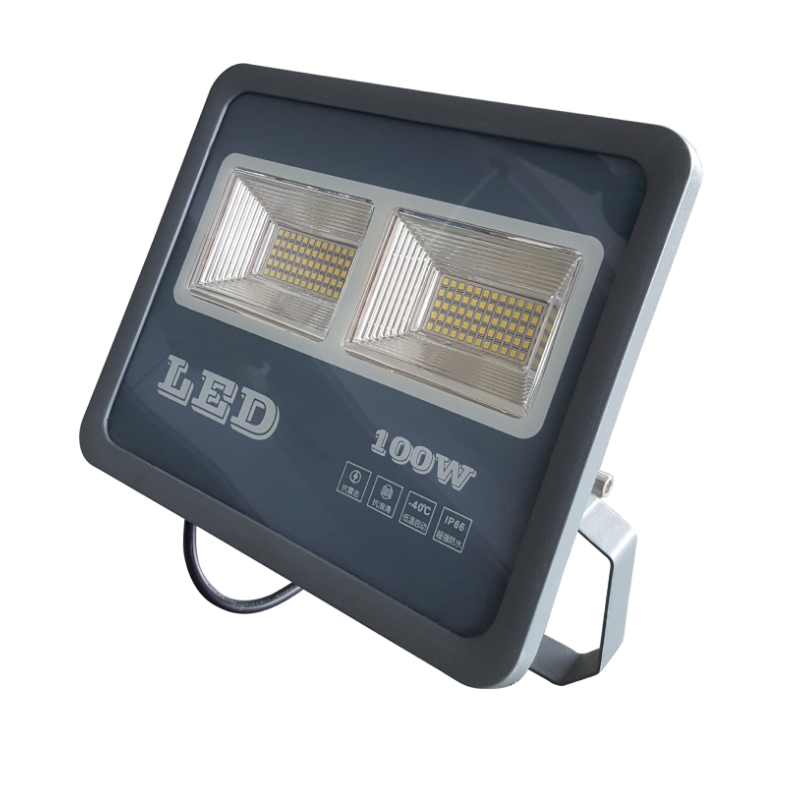

MJT-100W-2

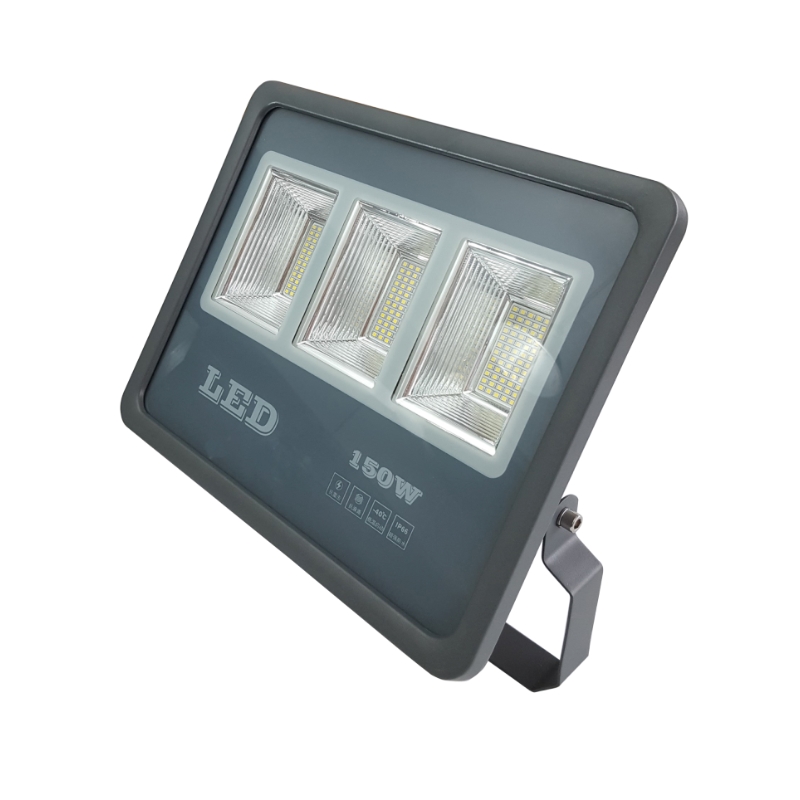

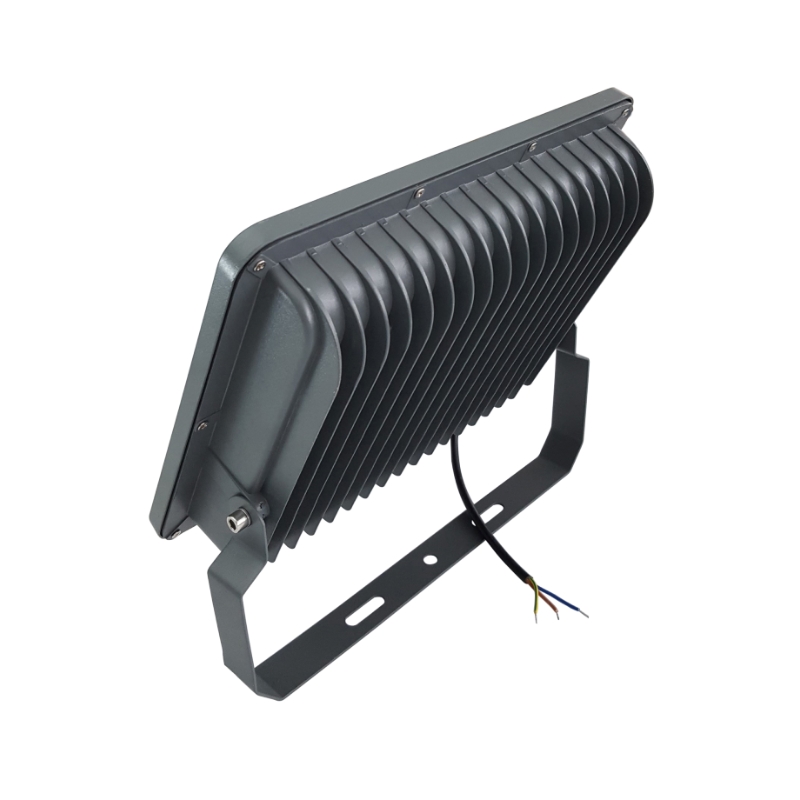

MJT-150W-3

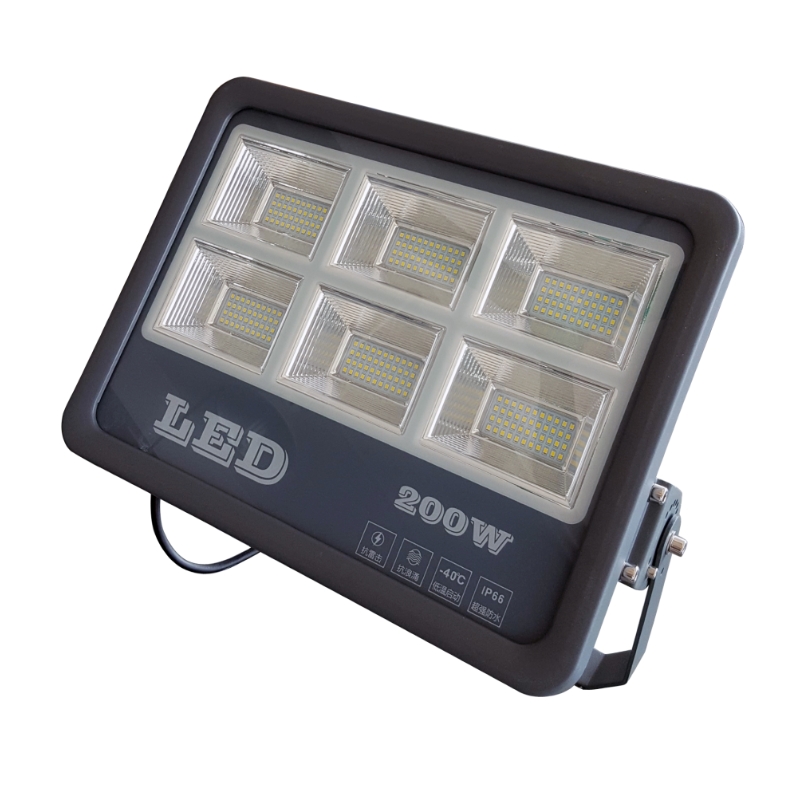

MJT-200W-6
MJT-240W-6

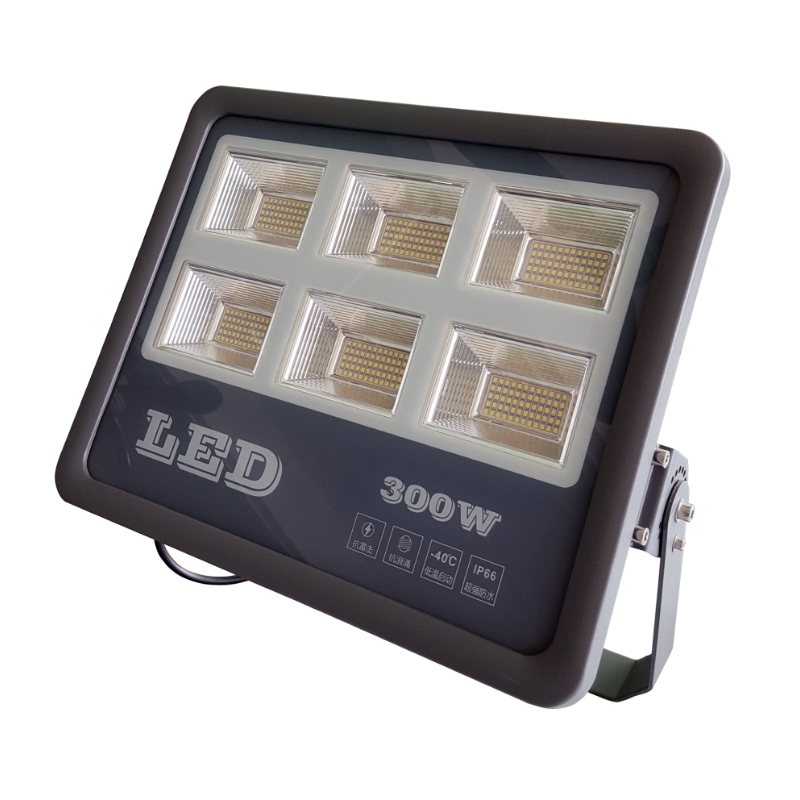

MJT-300W-6

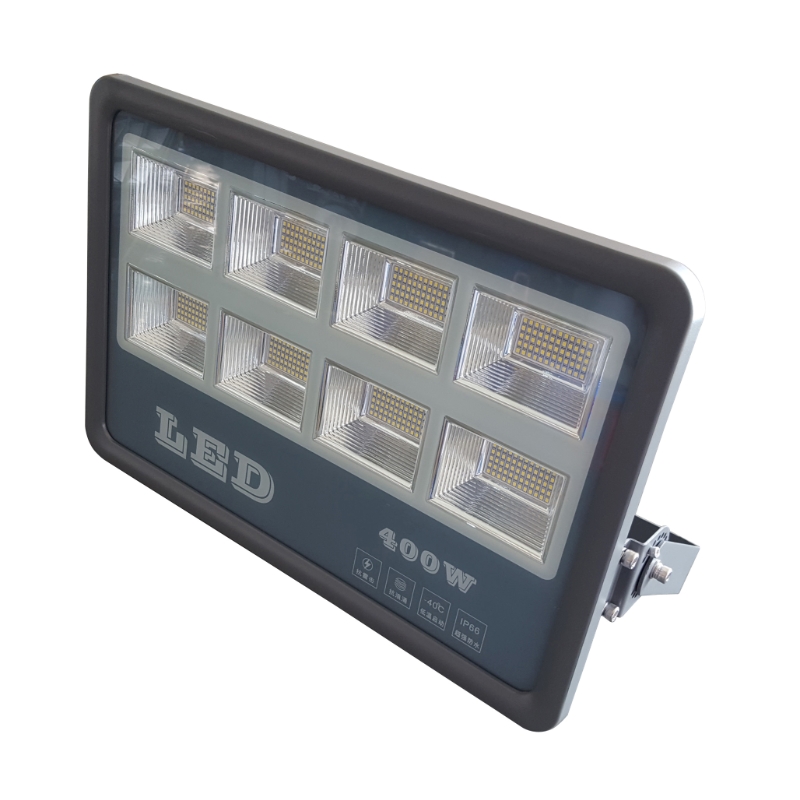

MJT-400W-8

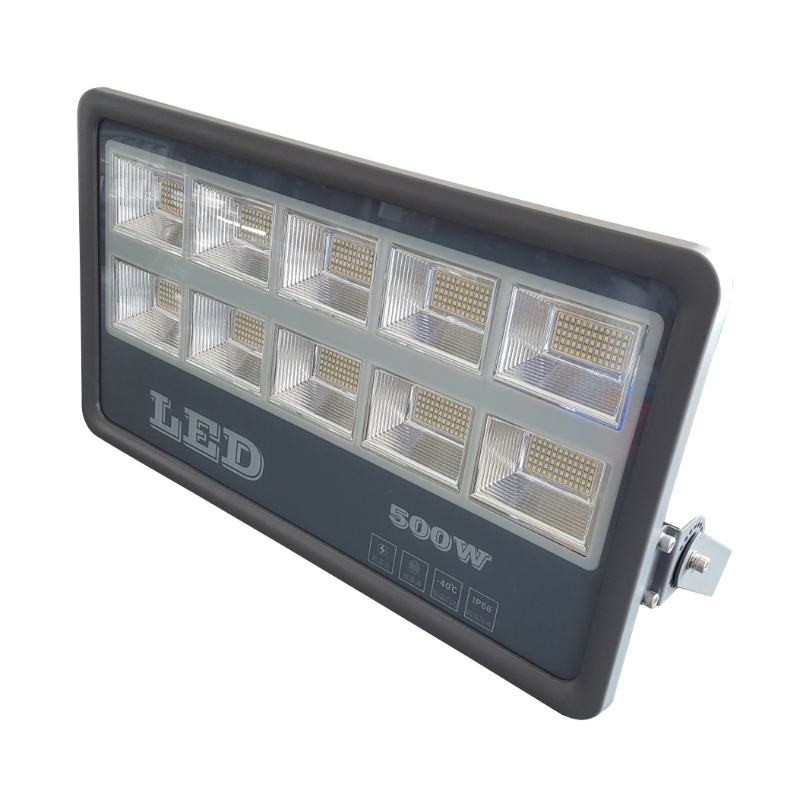

MJT-500W-10
MJT-600W-12
MJT-750W-15
產品中心
經典設計出發，提供適合的產品
功率范圍
RJ-MJT-30W
MJT-50W
MJT-100W-2
MJT-150W-3
MJT-200W-6
MJT-240W-6
MJT-300W-6
MJT-400W-8
MJT-500W-10
MJT-600W-12
MJT-750W-15
技術參數表
No. | 參數名稱Nameofparameter | 規格型號及參數表Specification model and technical data | ||||||||||
1 | 型號Type | MJT-30W | MJT-50W | MJT-100W | MJT-150W | MJT-200W | MJT-240W | MJT-300W | BDX-400W | BDX-500W | BDX-600W | BDX-750W |
2 | 功率Rated power | 30W | 50W | 100W | 150W | 200W | 240W | 300W | 400W | 500W | 600W | 750W |
3 | 電壓范圍Allowable operating voltage range | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V |
4 | 功率因數 Power factorPF | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 |
5 | 總諧波 Total harmonic distortion | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% |
6 | 耐壓Electric strength | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V |
7 | 角度Distribution Angle | 60°X 80° | 60°X 80° | 60°X 80° | 60°X 80° | 60°X 80° | 60°X 80° | 60°X 80° | 60°X 80° | 60°X 80° | 60°X 80° | 60°X 80° |
8 | 顯色指數CRI(color rendering index)Ra | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 |
9 | 色溫Color temperatureCCT | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K |
10 | 光效 Whole light effect(lm) | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 |
11 | 環境溫度Operating ambient temperature | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C |
12 | 壽命Life | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs |
13 | 防雷保護 Lightning and surge protection rating | ≥6K | ≥6K | ≥6K | ≥6KV | ≥6KV | ≥6KV | ≥6KV | ≥6KV | ≥6KV | ≥6KV | ≥6KV |
14 | 防護等級IP Grade | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 |
